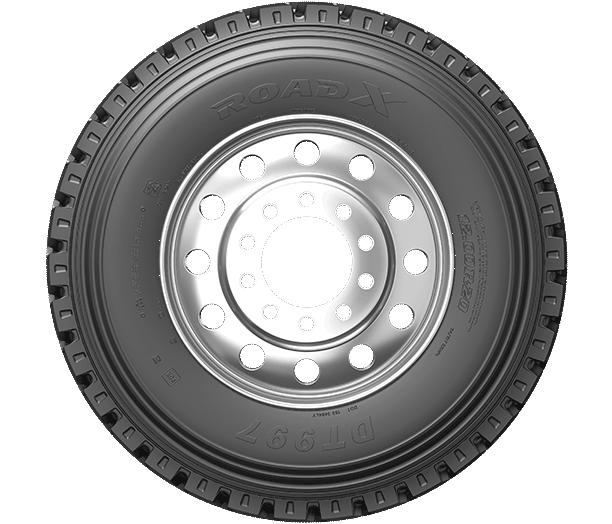

DT997

The RoadX DT997 is a drive position tire for trucks driving in off-road applications.
-

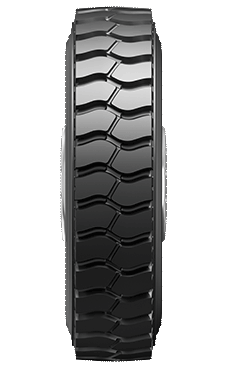

Large tread blocks and deepend grooves improve off-road traction and braking performance.
-
Open shoulder design improves self-cleaning capabilities.
-
Central conncting rib increases block rigidity and improves tear resistance.
* Swipe sideways to see more
Plant | Size | Standard Rim(inch) | PR | Load | Pressure | Load Index | Tread Depth (mm) | Speed Grade | Inflated Tire Dimention(mm) | ||||||||
Kg | Lbs | Kpa | Psi | ||||||||||||||
S | D | S | D | S | D | S | D | S | D | D | B | ||||||
CN | 7.50R16LT | 6.00G | 14 | 1500 | 1320 | 3305 | 2910 | 770 | 770 | 112 | 112 | 122 | 118 | 14.5 | G | 805 | 215 |
CN | 8.25R16LT | 6.50H | 16 | 1800 | 1600 | 3970 | 3525 | 770 | 770 | 112 | 112 | 128 | 124 | 15.5 | G | 855 | 235 |
CN | 10.00R20 | 7.5 | 18 | 3250 | 3000 | 7160 | 6610 | 930 | 930 | 135 | 135 | 149 | 146 | 23 | F | 1054 | 278 |
CN | 11.00R20 | 8.0 | 16 | 3350 | 3075 | 7390 | 6780 | 830 | 830 | 120 | 120 | 150 | 147 | 23.5 | F | 1085 | 293 |
CN | 11.00R20 | 8.0 | 18 | 3550 | 3250 | 7830 | 7160 | 930 | 930 | 135 | 135 | 152 | 149 | 23.5 | F | 1085 | 293 |
CN/VN | 12.00R20 | 8.5 | 18 | 3750 | 3450 | 8270 | 7610 | 830 | 830 | 120 | 120 | 154 | 151 | 23.5 | F | 1125 | 315 |
CN | 12.00R20 | 8.5 | 22 | 4250 | 3875 | 9370 | 8540 | 970 | 970 | 140 | 140 | 158 | 155 | 23.5 | F | 1136 | 315 |
