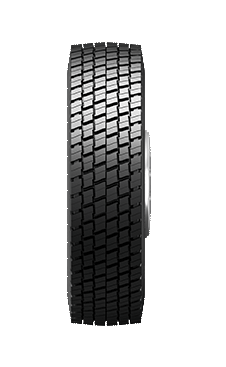

RT785

The RoadX RT785 is a drive position tire for trucks driving in regional applications.
-
Tread block sipe design improves heat dissipation.
-
Wide tread grooves effectively improve self-cleaning performance and traction.
-
Wide tread improve handling and driving safety.
-
Rib connectors between the tread blocks improve rigidity and promote even wear.
* Swipe sideways to see more
Plant | Size | Standard Rim(inch) | PR | Load | Pressure | Load Index | Tread Depth (mm) | Speed Grade | Inflated Tire Dimention(mm) | ||||||||
Kg | Lbs | Kpa | Psi | ||||||||||||||
S | D | S | D | S | D | S | D | S | D | D | B | ||||||
CN | 9.5R17.5 | 6.75 | 16 | 2060 | 1950 | 4540 | 4300 | 830 | 830 | 120 | 120 | 133 | 131 | 16.5 | M | 850 | 240 |
CN | 9.5R17.5 | 6.75 | 18 | 2725 | 2575 | 6005 | 5675 | 875 | 875 | 66 | 66 | 143 | 141 | 16.5 | J | 842 | 240 |
CN/VN | 205/75R17.5 | 6.00 | 14 | 1600 | 1500 | 3525 | 3315 | 750 | 750 | 110 | 110 | 124 | 122 | 15 | L | 753 | 205 |
CN/VN | 215/75R17.5 | 6.00 | 16 | 2180 | 2060 | 4805 | 4540 | 860 | 860 | 125 | 125 | 135 | 133 | 15 | L | 773 | 211 |
VN | 215/75R17.5 | 6.00 | 14 | 1700 | 1600 | 3750 | 3525 | 700 | 700 | 100 | 100 | 126 | 124 | 15 | M | 767 | 211 |
CN/VN | 215/75R17.5 | 6.00 | 18 | 2240 | 2120 | 4940 | 4675 | 890 | 890 | 129 | 129 | 136 | 134 | 15 | J | 767 | 211 |
VN | 225/70R19.5 | 6.75 | 14 | 1800 | 1700 | 3970 | 3750 | 760 | 760 | 110 | 110 | 128 | 126 | 15 | L | 811 | 226 |
VN | 225/75R17.5 | 6.75 | 14 | 1850 | 1750 | 4080 | 3860 | 725 | 725 | 125 | 125 | 129 | 127 | 15 | M | 783 | 226 |
CN/VN | 235/75R17.5 | 6.75 | 18 | 2725 | 2575 | 6005 | 5675 | 860 | 860 | 120 | 120 | 143 | 141 | 15 | L | 797 | 233 |
VN | 235/75R17.5 | 6.75 | 16 | 2000 | 1900 | 4410 | 4190 | 760 | 760 | 110 | 110 | 132 | 130 | 15 | M | 797 | 233 |
VN | 245/70R17.5 | 7.50 | 16 | 2240 | 2120 | 4940 | 4675 | 850 | 850 | 125 | 125 | 136 | 134 | 15.5 | M | 789 | 248 |
VN | 245/70R19.5 | 7.50 | 16 | 2240 | 2120 | 4940 | 4675 | 830 | 830 | 120 | 120 | 136 | 134 | 15.5 | M | 845 | 248 |
CN | 245/70R19.5 | 7.50 | 18 | 2800 | 2650 | 6175 | 5840 | 900 | 900 | 130 | 130 | 144 | 142 | 15.5 | J | 845 | 248 |
CN/VN | 265/70R19.5 | 7.50 | 18 | 2725 | 2575 | 6005 | 5675 | 900 | 900 | 130 | 130 | 143 | 141 | 15.5 | J | 867 | 262 |
VN | 265/70R19.5 | 7.50 | 16 | 2500 | 2360 | 5510 | 5205 | 760 | 760 | 110 | 110 | 140 | 138 | 15.5 | M | 867 | 262 |
CN/VN | 285/70R19.5 | 8.25 | 18 | 3350 | 3150 | 7390 | 6940 | 900 | 900 | 130 | 130 | 150 | 148 | 16 | K | 895 | 283 |
VN | 285/70R19.5 | 8.25 | 16 | 3000 | 2800 | 6610 | 6175 | 900 | 900 | 130 | 130 | 146 | 144 | 16 | M | 895 | 283 |
VN | 295/60R22.5 | 9.00 | 18 | 3350 | 3075 | 7390 | 6780 | 900 | 900 | 130 | 130 | 150 | 147 | 19 | L | 926 | 262 |
CN/VN | 295/80R22.5 | 9.00 | 18 | 3550 | 3250 | 7825 | 7165 | 900 | 900 | 130 | 130 | 152 | 149 | 22 | L | 1044 | 298 |
CN/VN | 295/80R22.5 | 9.00 | 16 | 3550 | 3150 | 7825 | 6945 | 850 | 850 | 125 | 125 | 152 | 148 | 22 | M | 1044 | 298 |
VN | 315/60R22.5 | 9.75 | 18 | 3550 | 3150 | 7825 | 6945 | 900 | 900 | 130 | 130 | 152 | 148 | 20 | L | 950 | 313 |
VN | 315/70R22.5 | 9.00 | 18 | 4000 | 3350 | 8820 | 7385 | 900 | 900 | 130 | 130 | 156 | 150 | 20 | L | 1014 | 312 |
CN/VN | 315/80R22.5 | 9.00 | 20 | 4000 | 3650 | 8820 | 8050 | 850 | 850 | 125 | 125 | 156 | 153 | 22.5 | K | 1076 | 312 |
CN/VN | 315/80R22.5 | 9.00 | 18 | 4000 | 3350 | 8820 | 7385 | 850 | 850 | 123 | 123 | 156 | 150 | 22.5 | L | 1076 | 312 |
