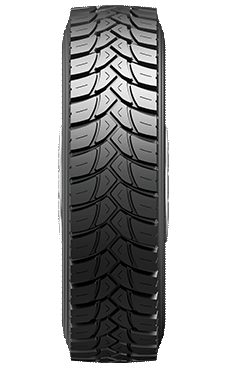

MS663
The RoadX MS663 is a drive position tire for trucks traveling in on and off-road applications.
-
Large tread blocks and central groove design impove traction in off-road applications.
-
Open shoulder design improves self-cleaning performance.
-
Deep tread and tire compound work to improve wear and tear resistance for overall improved mileage.
-
Arced groove bottom and open shoulder design improve selfcleaning capabilities and reduce stone retention.
* Swipe sideways to see more
Plant | Size | Standard Rim(inch) | PR | Load | Pressure | Load Index | Tread Depth (mm) | Speed Grade | Inflated Tire Dimention(mm) | ||||||||
Kg | Lbs | Kpa | Psi | ||||||||||||||
S | D | S | D | S | D | S | D | S | D | D | B | ||||||
CN | 295/80R22.5 | 9.00 | 18 | 3550 | 3250 | 7830 | 7160 | 900 | 900 | 130 | 130 | 152 | 149 | 18 | K | 1044 | 298 |
VN | 315/80R22.5 | 9.00 | 18 | 3750 | 3450 | 8270 | 7160 | 830 | 830 | 120 | 120 | 154 | 151 | 21 | K | 1076 | 312 |
VN | 315/80R22.5 | 9.00 | 20 | 4000 | 3650 | 8820 | 8045 | 850 | 850 | 125 | 125 | 156 | 153 | 21 | K | 1076 | 312 |
